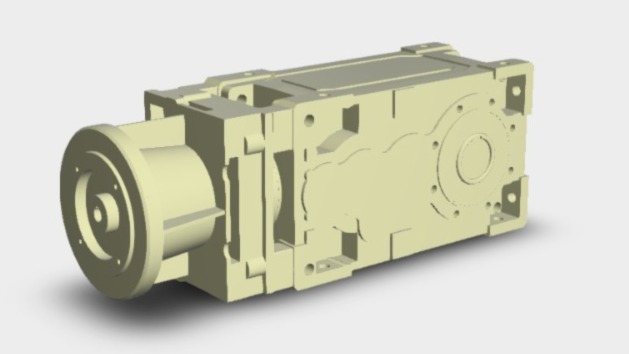

Bonfiglioli, Gear Ratio 344.2, Bell Housing Frame 112, 5 HP / 3.7 kW, Heavy Duty HDP Gearbox – I-HDO10043442HL1G112B3

Key Attributes:
Gearbox Housing TypeBox Wood
Output Speed Rpm4.067402673
Gearbox TypeHeavy Duty Bevel Helical
Input Speed Rpm1400
Categories: , ,

Description

Gearbox Housing TypeBox Wood
Output Speed Rpm4.067402673
Gearbox TypeHeavy Duty Bevel Helical
Input Speed Rpm1400
Input Motor Frame TypeBell Housing Frame 112
Gear Ratio344.2
Gearbox Output Shaft TypeHollow Output With Keyway
Gearbox Motor CouplingDirect
Input Power5 Hp / 3.7 Kw
Gearbox Mounting VersionUniversal Foot Mounted
Torque Rating23870 Nm
Efficiency0.89
Input Shaft Diameter28 Mm
Warranty12 Months
Output Shaft Diameter120 Mm
Service Factor1
